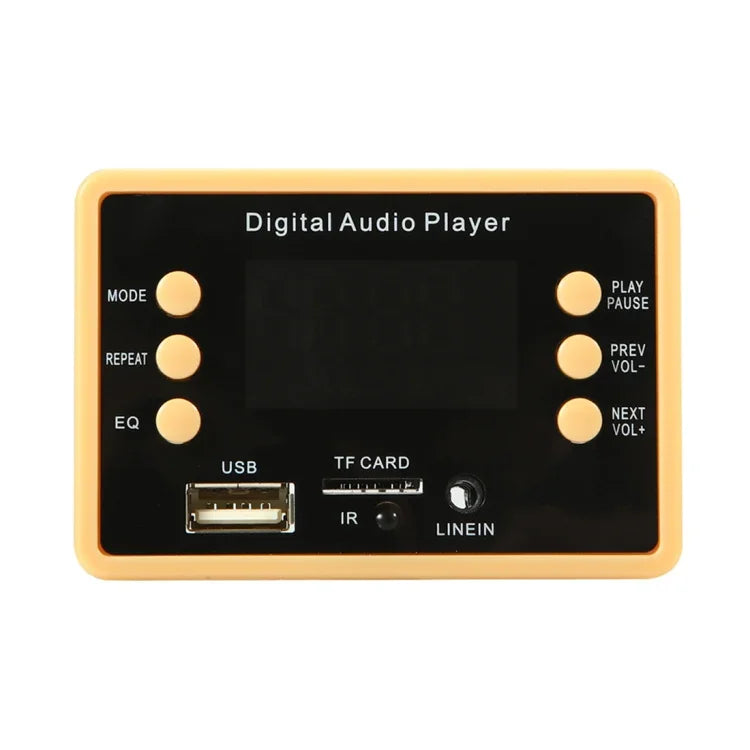

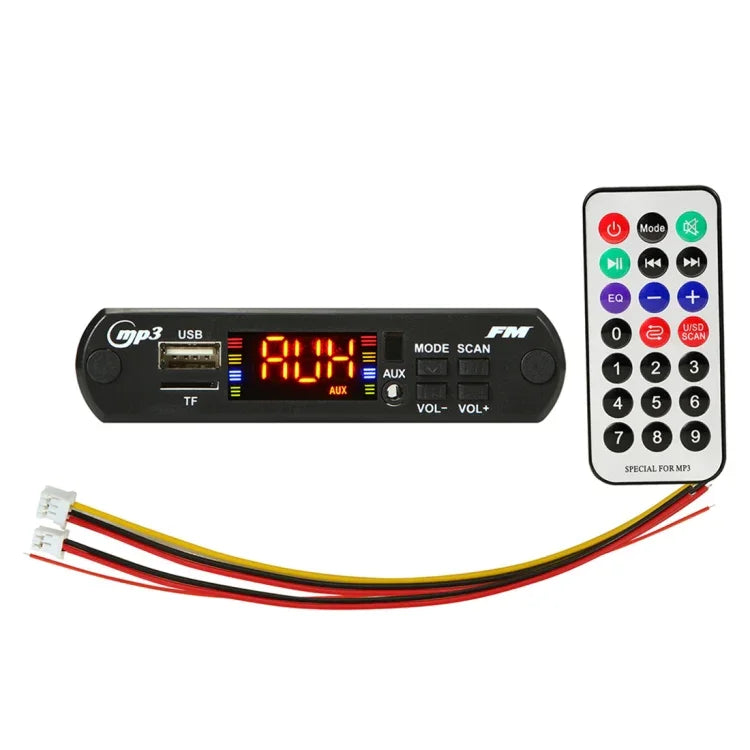

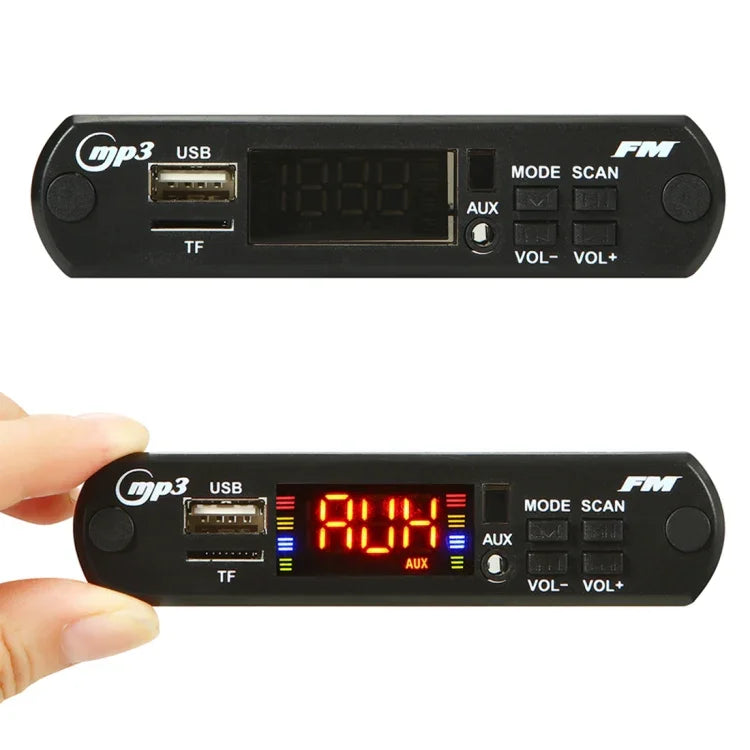

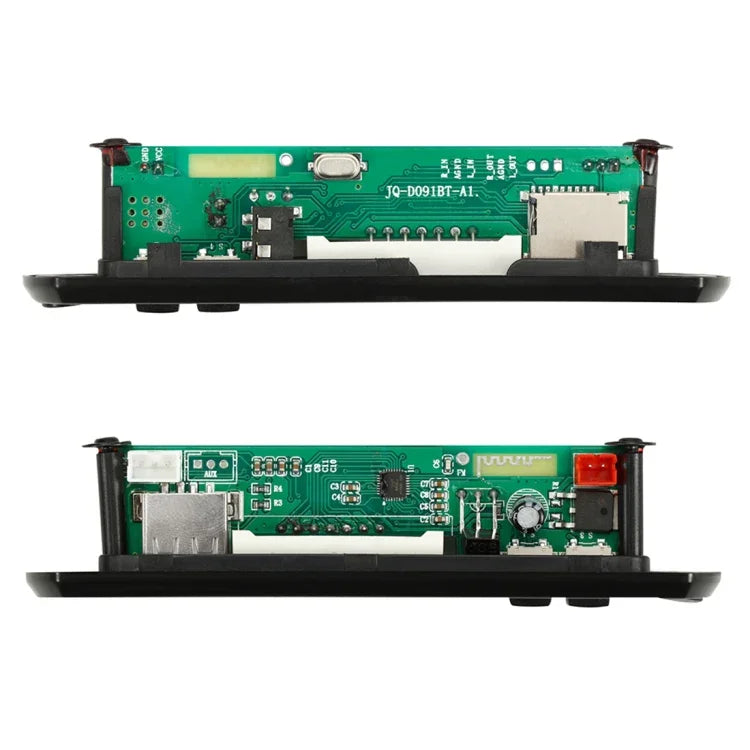

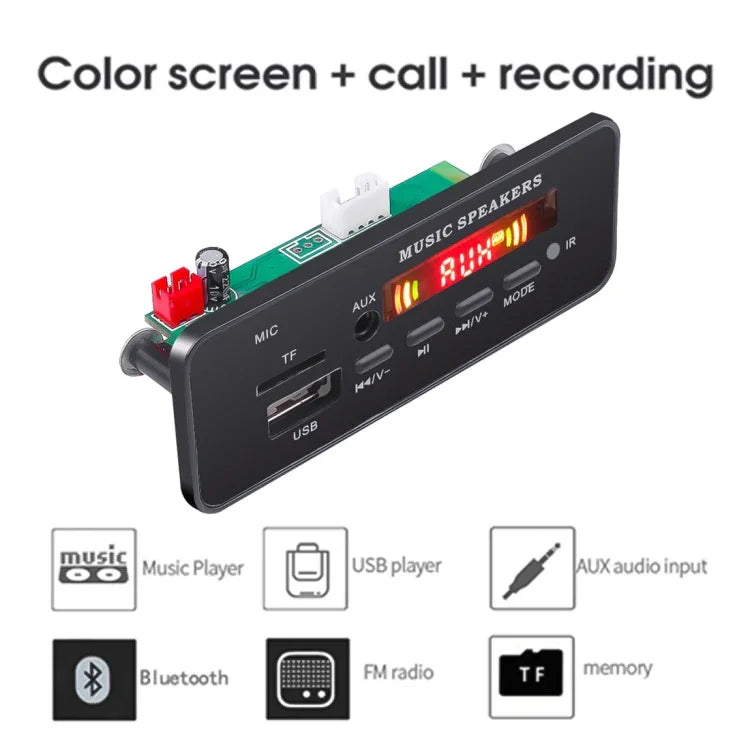

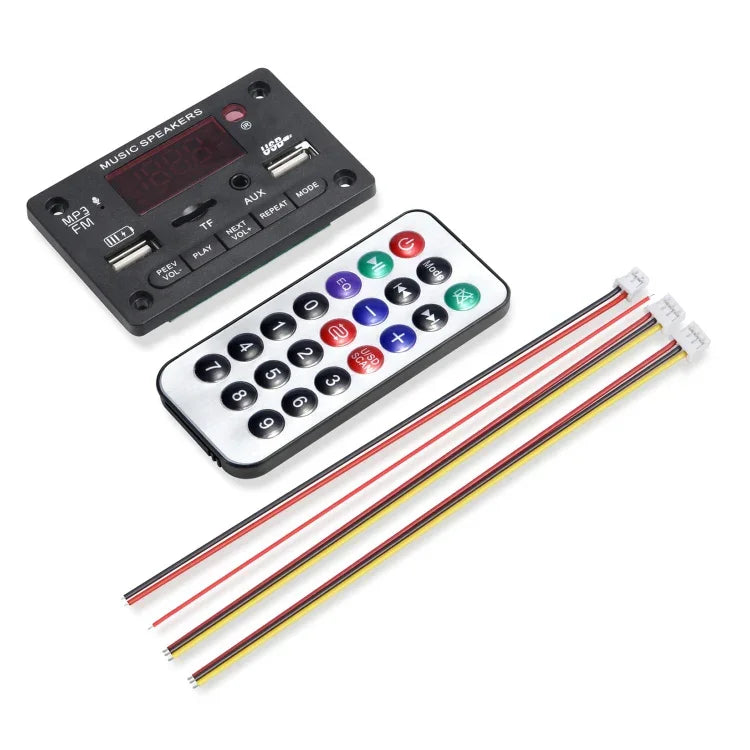

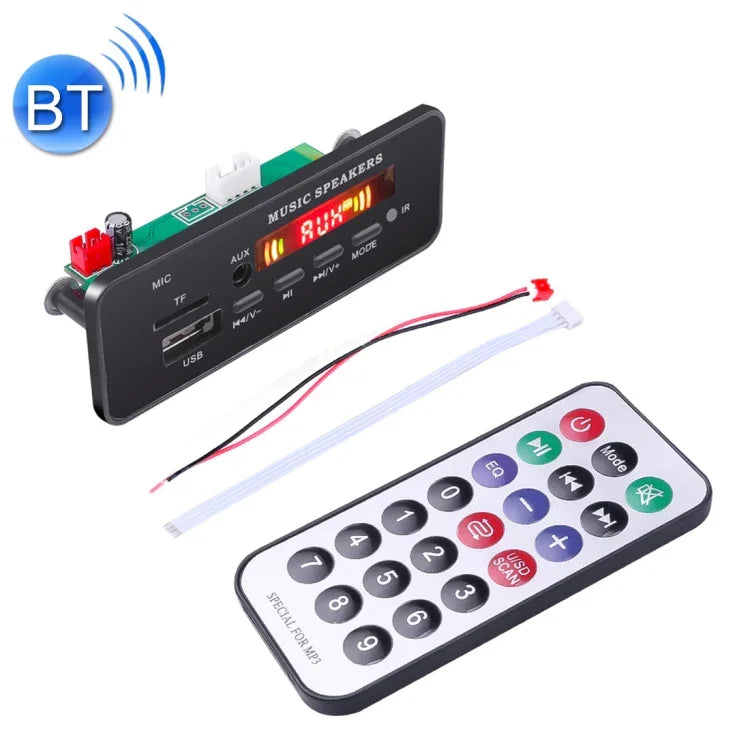

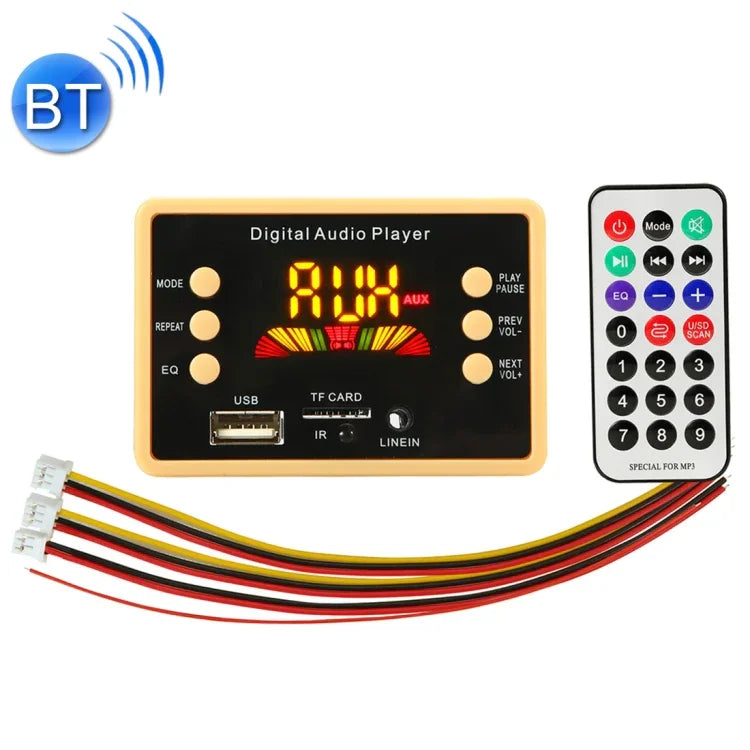

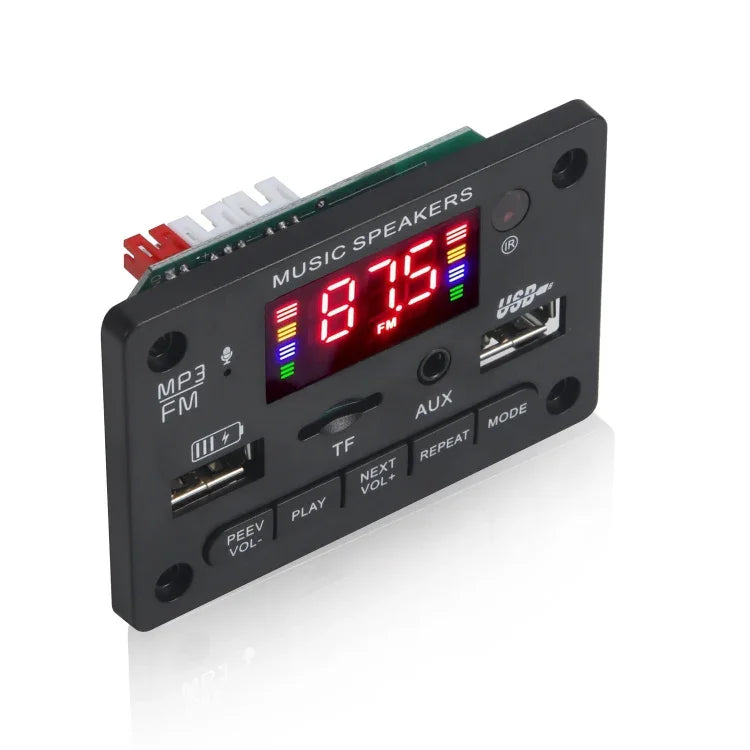

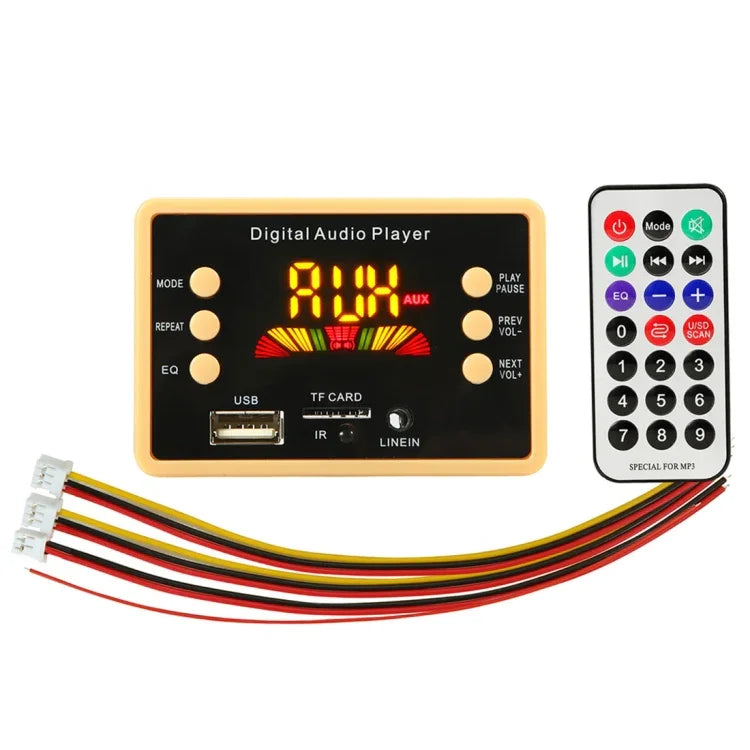

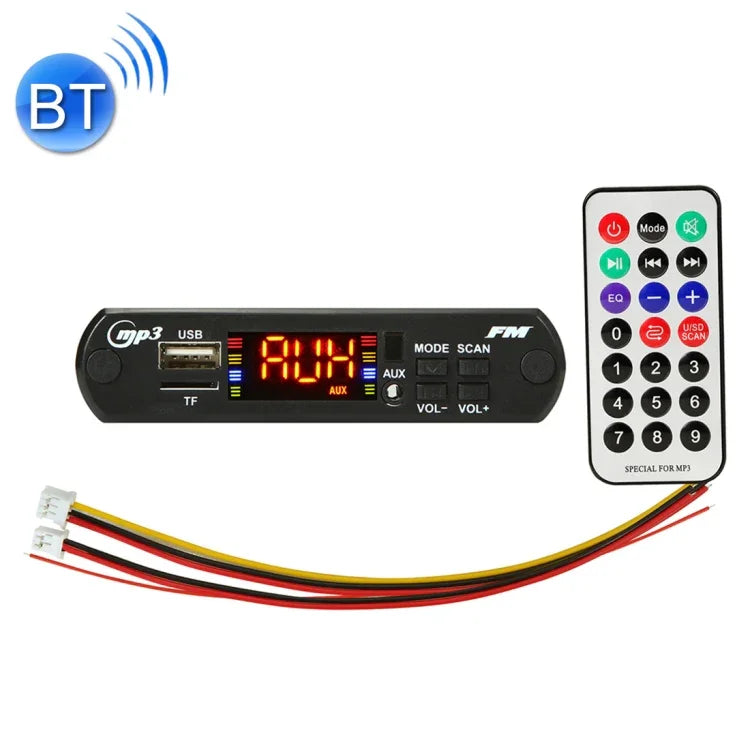

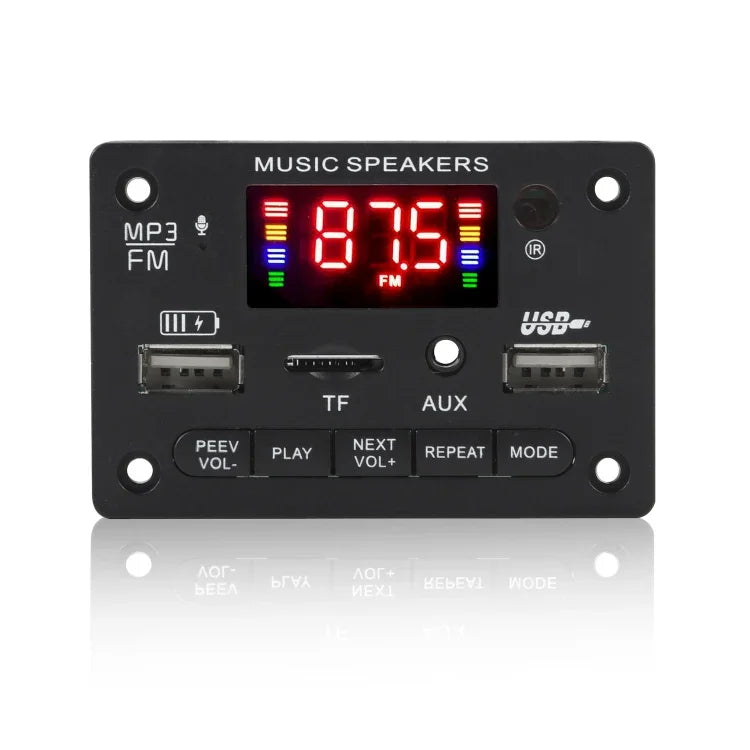

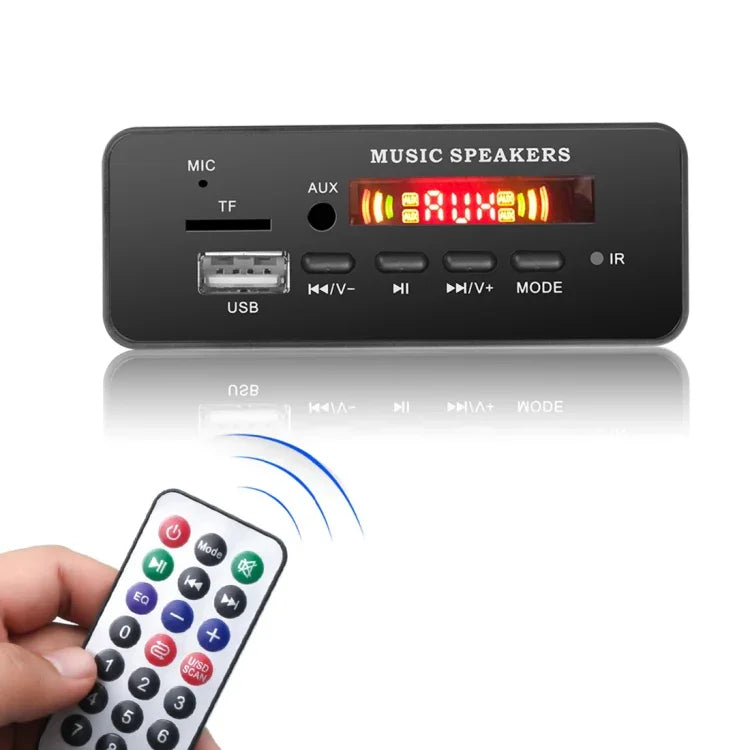

Main function:
1. Jerry solution, dual decoding supports MP3 / WMA / WAV format music
2. With Bluetooth
3. With digital tube display
4. Supports MMC / TF / MMA cards, USB interface (U disk)
5. Support radio FM, cable receiving frequency (87.5MHZ-108.0MHZ)
6. Power-off memory function 24C02

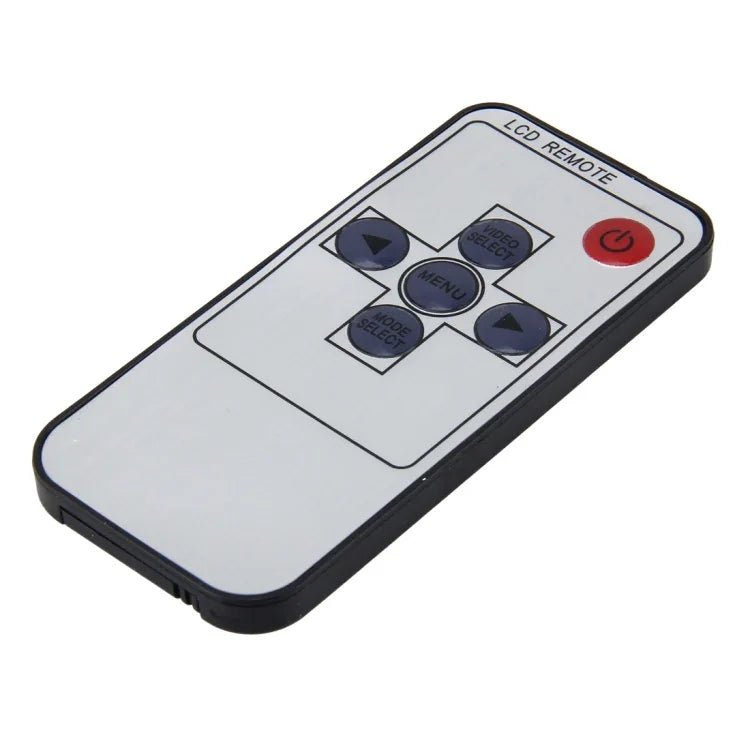

7. Support 5-10 meters infrared remote control operation
8. Support LINE IN (AUX)
9. Buttons: Four-button multi-directional control, PLAY / PREV / NEXT / REPEAT / EQ / MODE
Key operation details:
1. PLAY button (play / pause): PLAY short press in MP3 state is play / pause, short press in FM state is play / pause, long press is automatic closing and saving station
2. PREV button (previous song / turn down the volume): In the MP3 state, a short press of PREV will be the previous song, a long press will decrease the volume, and a short press in the FM state will increase the station number by one.
3. NEXT button (next song / speaker up): In the MP3 state, a short press of NEXT is the next song, a long press is to increase the volume, and a short press in the FM state is to down a station number.
4. REPEAT (repeating): single click in MP3 status for repeat function, single click to cancel repeat function
5. EQ: sound field mode, test 6 kinds of sound quality: classical, jazz, rock, bass, pop, normal
6. MODE button (analog): switch between USB / SD / FM / AUX / Bluetooth sequentially

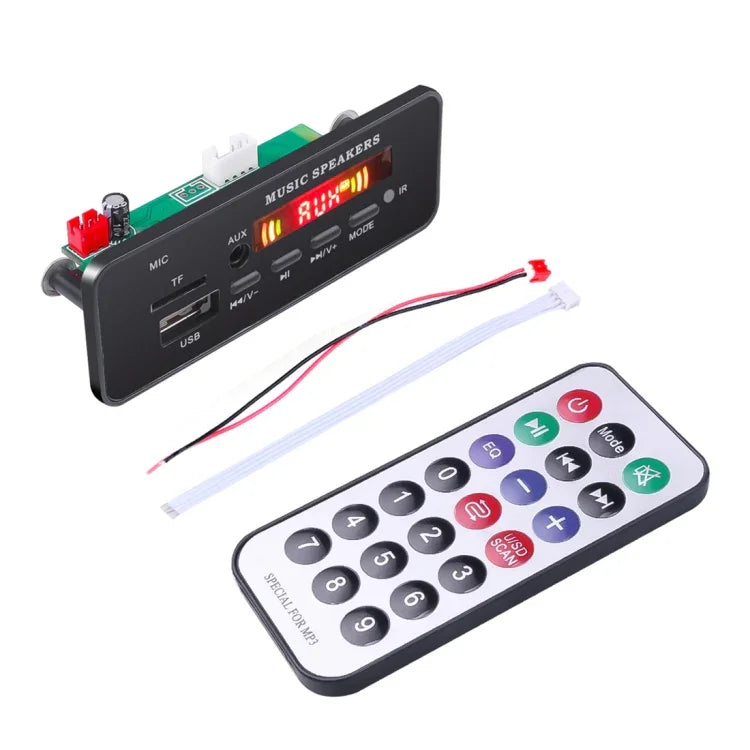

1. Bluetooth version 5.0
2. Support calls (long press the pause button to answer the call when there is an incoming call).
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as: U disk or TF card;)
4. Support power off memory
5. The power supply voltage supports between DC 5v-12v, and the working current is between 1-2A. A single USB discharge supports 2A (max) current, and the size of the current is determined by the input voltage and the data line to determine the final output value.
6. Can be directly connected to speakers, with power amplifier and decoding functions.
7. Support song format MP3 / WAV / APE / FLAC
8. Main functions MP3/USB/TF/Line in/FM/Bluetooth/Remote control/
9. Power 6W, true stereo 2x3W.
10. Support folder selection and playback. When USB or TF is playing, when there is a folder in the device and there are songs in the folder, press the previous button or the next button twice to select the folder to play the song, and the screen will display F001-F00x and so on, there are x files and the folder will display F00x.

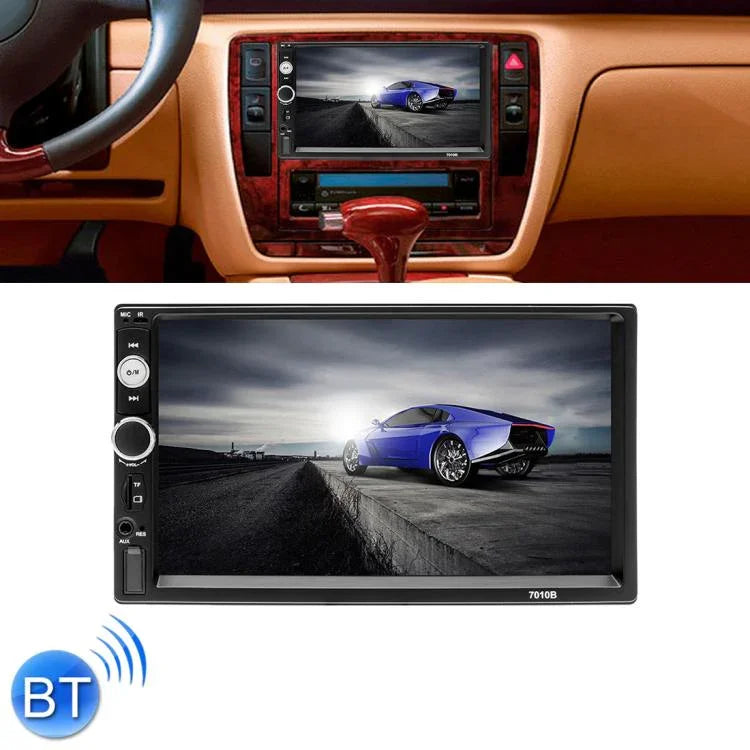

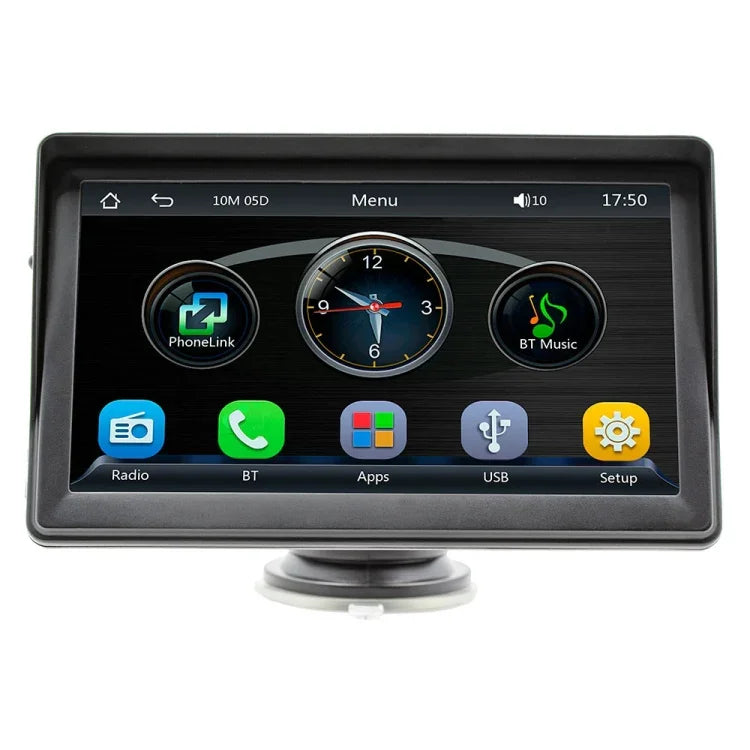

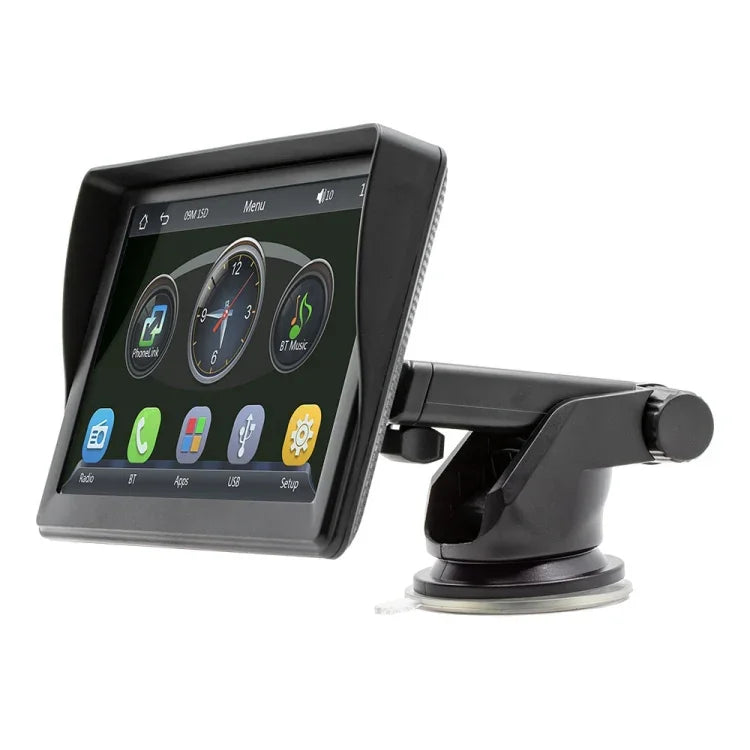

1. Radio frequency transmission function
2. SD card U disk (audio/video/picture)
3. Bluetooth function
4. Wired mobile phone screen projection, wired and wireless Android AUTO/Apple CarPlay
5. Parameters:
System: Allwinner melis system
Software solution: F133
Radio transmission frequency: FM 87.5~108.0MHz
Radio transmitter IC: AB5301B
Power amplifier IC: CS8571E
Output power: built-in 1W speaker
Working voltage: 12~24V
Working temperature: -10~60 degrees Celsius
Bluetooth version: version 5.1 (default name: CarPlay)
wifi frequency: 2.4G/5G dual frequency
CPU: F133
Running memory: 1Gbit DRAM
Display Resolution: 1024x600
Screen size: 7 inch HD
Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV
Video format: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
Image format: JPEG/PNG/BMP/GIF/TIFF
Languages: English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese

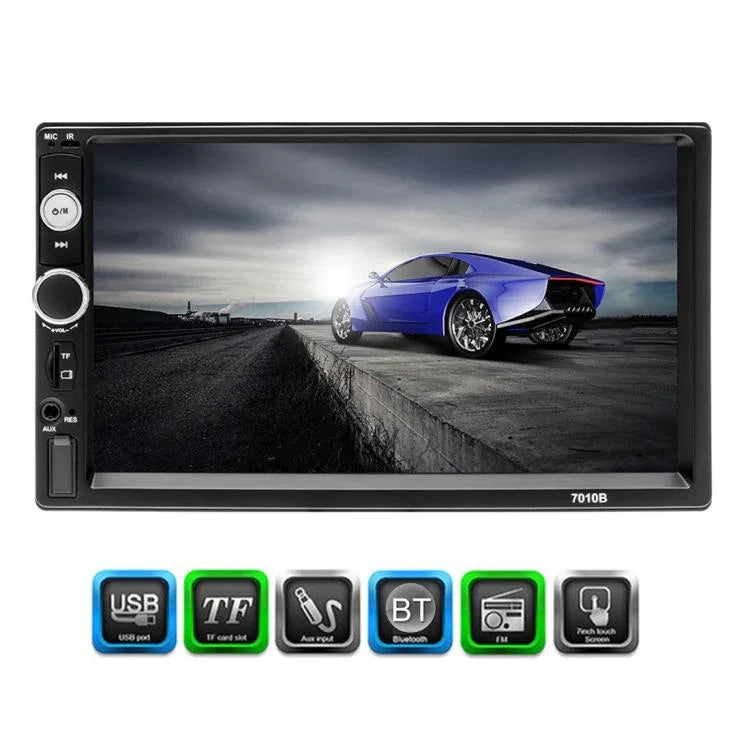

Features:
1. Dual LED segment display: LCD display shows the actual reception and function. Supports clock display even when the power is off
2. Support mobile phone fast charging: dual USB ports can charge smart phones and play MP3 music
3. Button blue background light
4. Multifunction: FM radio, music player, wireless BT player, BT hands-free call, high power 4 x 60W and AUX connection
5. Stereo effect: built-in powerful IC brings stereo effect, allowing you to experience driving pleasure
6. Bluetooth connection: Bluetooth hands-free via microphone (make and receive calls via BT), BT streaming (play music from the phone via BT)
7. FM 18 preset memory station: Get news, real-time traffic conditions and radio stations as needed, support automatic and manual adjustment
8. Music playback mode: support multiple music playback methods-TF card/U disk music player, BT music player and AUX music player
9. Liquid crystal display: The liquid crystal display shows the actual reception and functions. Supports clock display even when the power is off
10. EQ sound effects, volume adjustment, RCA audio input support, can be connected to a subwoofer
11. Power-off memory function, memorize the music or the sound state of music when the power is off

Parameter:
1. Material: metal, plastic
2. Voltage: DC 12V
3. Sensitivity: 12dB
4. Signal to noise ratio: 50dB
5. Output power: 60W x 4
6. Frequency response: 40-15kHz
7. Decoding chip: Jianrong 66 33 E

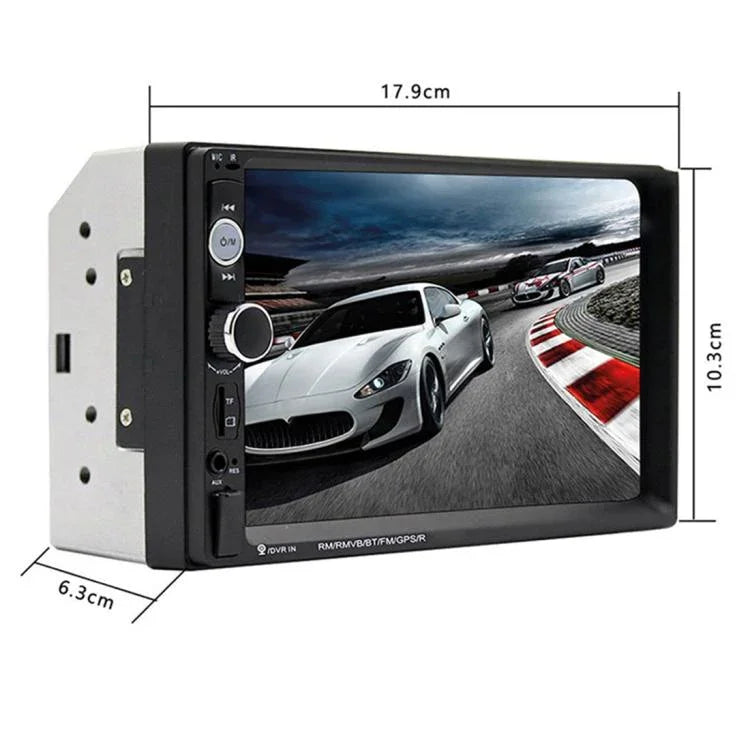

8. Screen size: 7 inches
9. Audio format: MP3/WMA/WAW
10. Support input: AUX/USB
11. USB interface: dual
12. Mobile phone charging: support iOS/Android
13. Radio frequency band: FM/AM
14. Power output chip: TDA7377
15. Audio chip: QN8035
16. Radio frequency: 87.5~107.9MHz

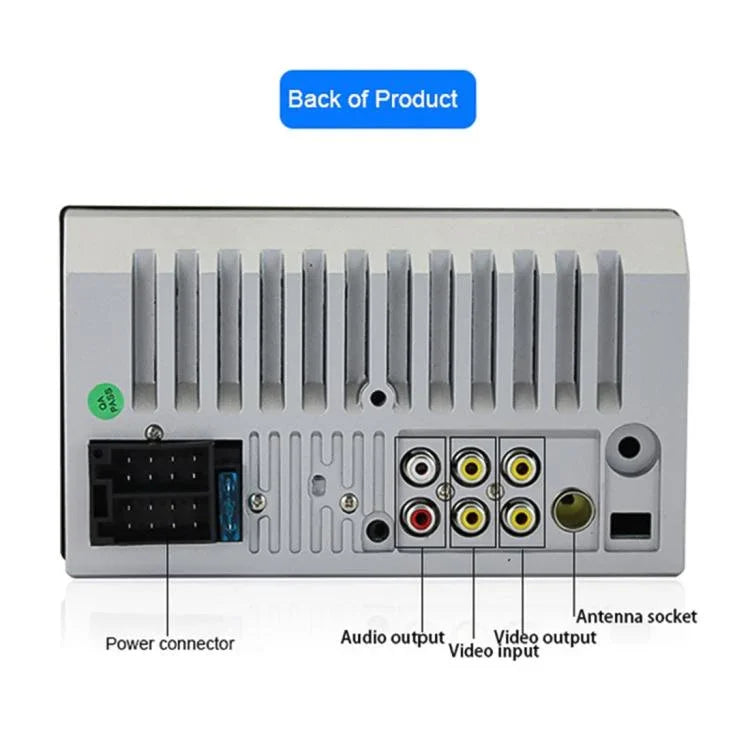

17. RCA: Two audio outputs
18. Volume control: support
19. Dimensions: 188mmx58mmx35mm

Packing list:
MP5 player x 1
Power cable x 1
Speaker cable x 1
User manual x 1
Fixed iron x 2
